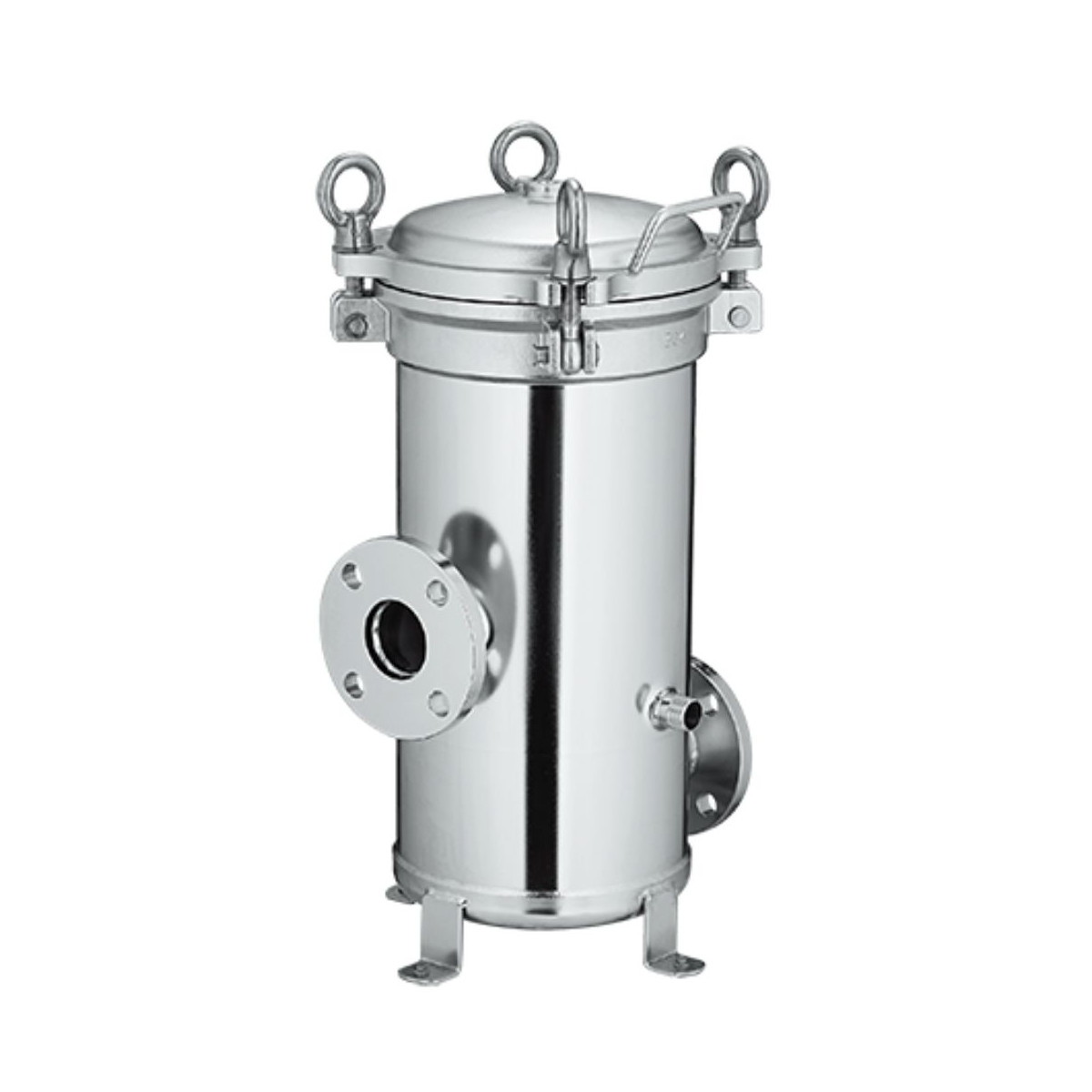

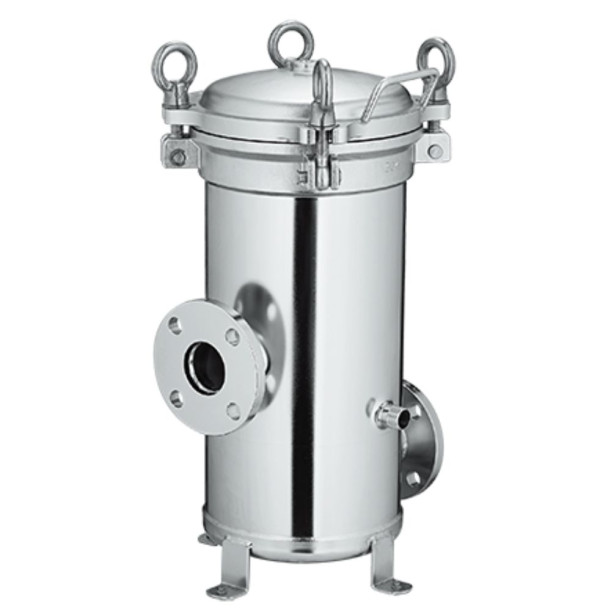

Stainless Steel High Pressure Multi-Cartridge Filter Housing
Brand:
Product Code:
TKH
The TKH stainless steel filter cartridge housing comes in three variants of materials (SUS304, SUS316, SUS316L) and has the capacity to accommodate up to 7 filter cartridges. This housing is widely utilized in water filtration systems and sewage treatment within the chemicals, pharmaceutical, electronics, F&B, industries.
- Operating temperature: 75 °C
- Operating pressure: 150 PSI
- Swing-bolt type ensures tight closure without leakage
- Well O-ring groove design improves sealing and prevent loosening.
- Opening angle of 105° for space-saving filter replacement
- Housing length: 10, 20, 30, 40 inch
- Cartridges end style: DOE, S2C, S2F
- Material: SUS 304, SUS 316, SUS 316L
- Cartridge quantity: 3 to 7
- O-ring material: EPDM, Viton, Silicon, NBR, Teflon + Silicon
- Connection: ANSI Flange, NPT, BSP
