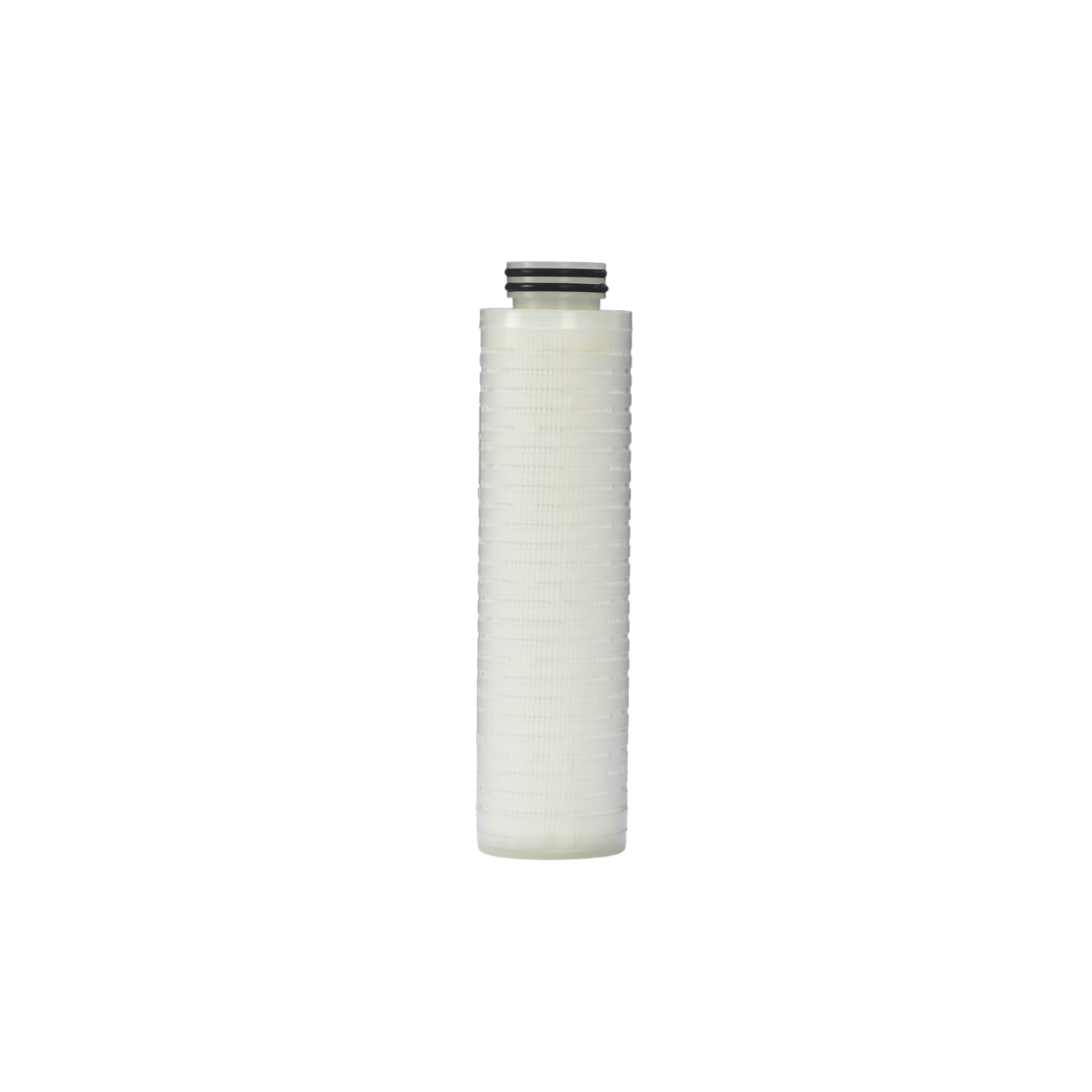

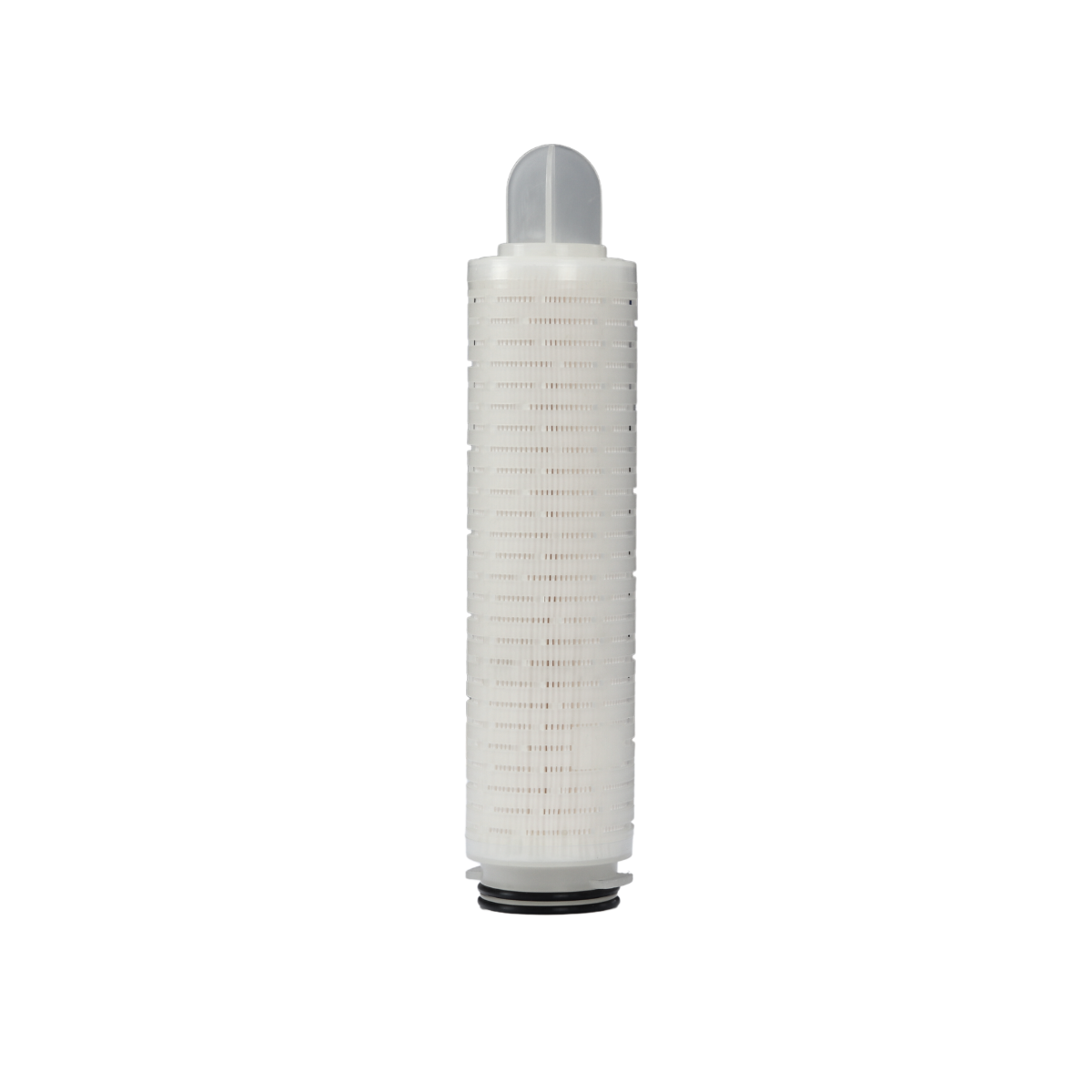

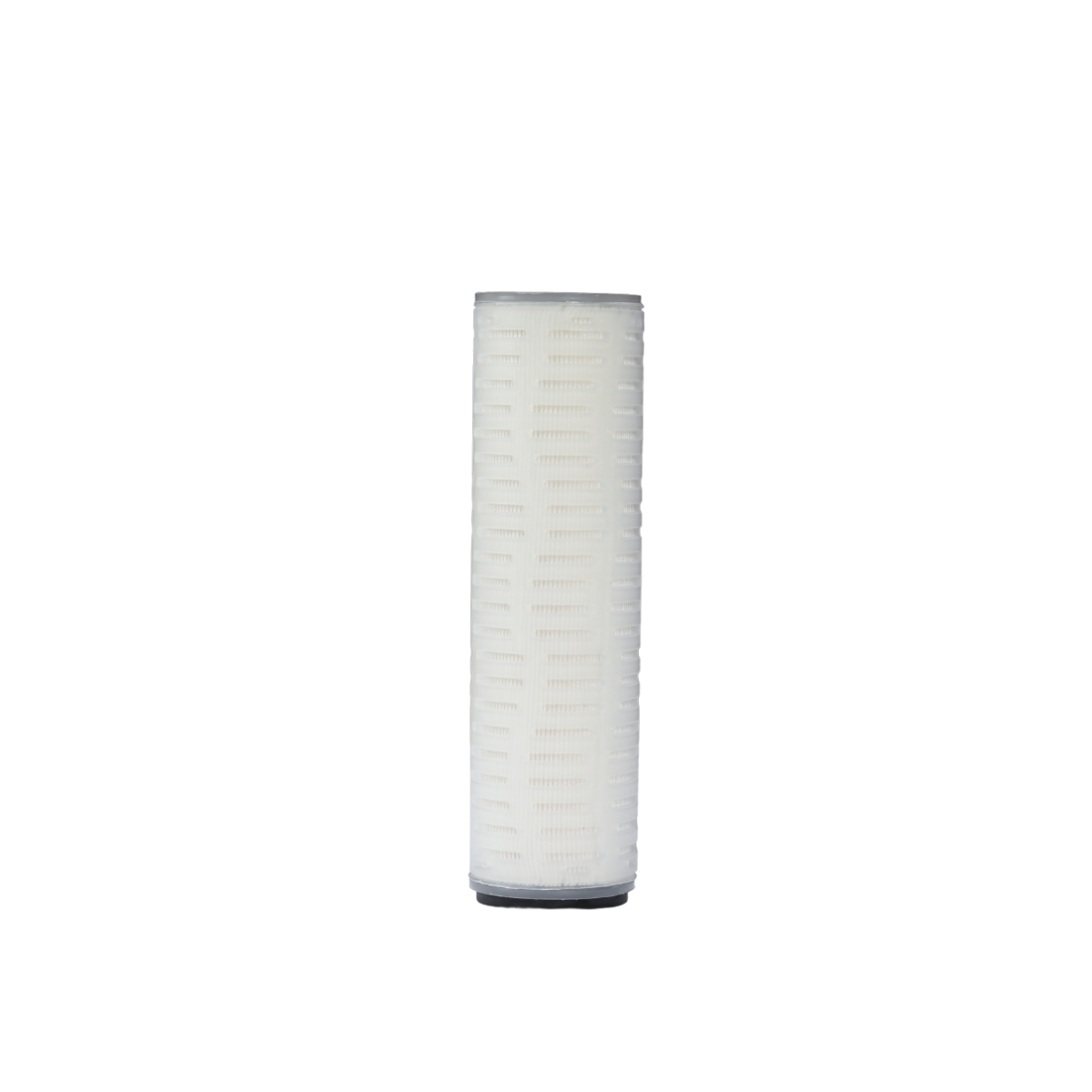

Polyether Sulfone Pleated Particle Filter Cartridge
Brand:
Product Code:
PES
Karei PES series pleated filters are made of casted Sulfonated PES (Polyether-Sulfone) polymers that offers absolute membrane filtration with fixed pore size from 0.04 to 1.2 micron. It is manufactured in Class 10K cleanroom environment and ISO-9001 certified. The filters are also designed for final filtration where absolute retention is required to remove extremely fine particles and bacteria to protect the downstream system.
Meets USP Class VI-121°C plastic reactivity test for biosafety and comply with FDA Code of Federal Regulation Title 21 for food and beverage use.
Suitable for wide range of process fluid applications including pharmaceutical, micro-electronics, F&B, biological, cosmetics and various types of application.
- Inherently hydrophilic and the high asymmetrical fixed pore structure of PES membrane offers absolute filtration, high dirt holding capacity, lower pressure drop and increasing filtration performance to give higher efficiency and flow rates than symmetrical membrane
- All components, parts and supporting layers are thermally welded without any surfactants, binder or adhesive.
- Excellent chemical compatibility: pH 1-14
- Absolute Micron Rating: 0.04, 0.1, 0.2, 0.45, 0.65, 0.8, 1.2
- Length (inch): 10, 20, 30, 40

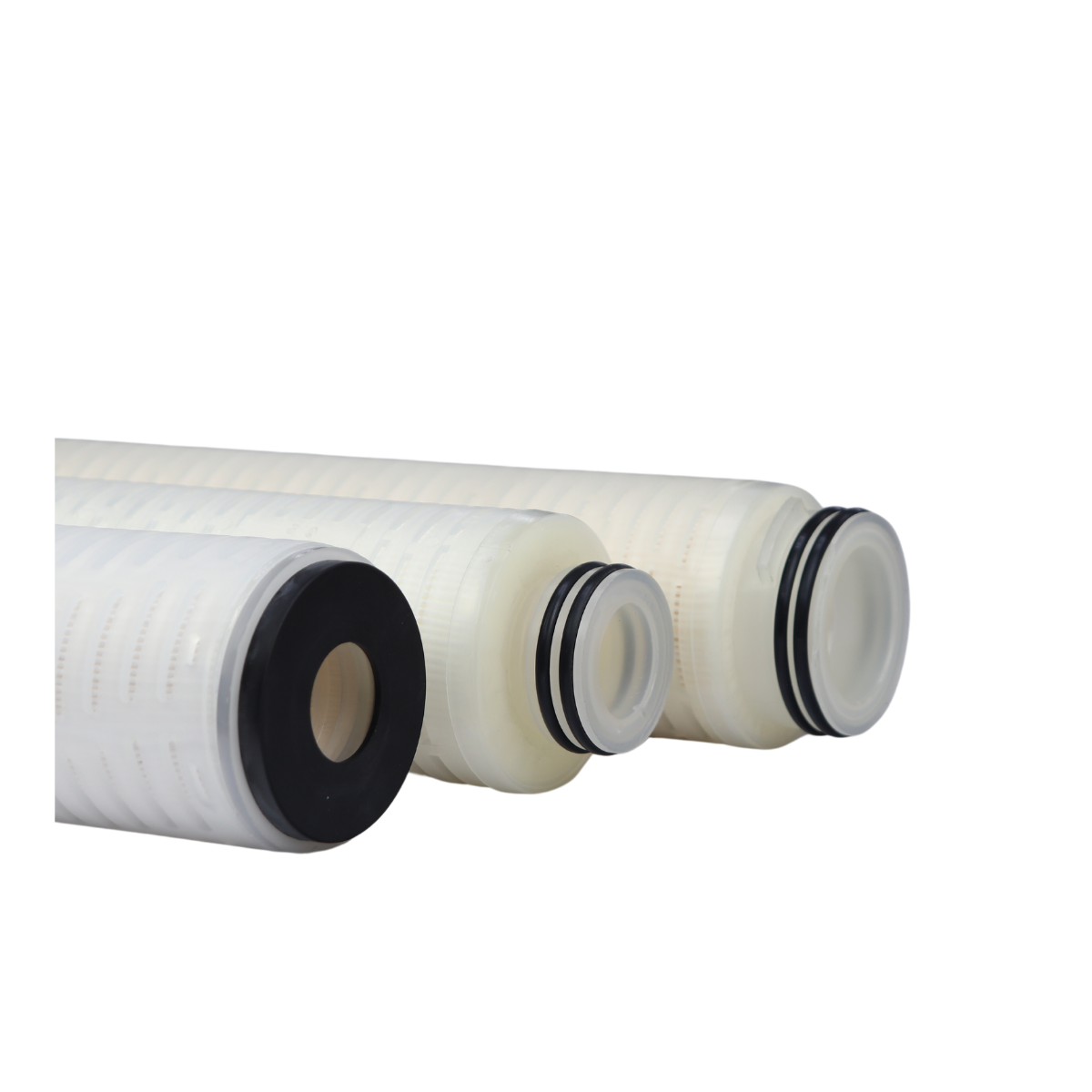

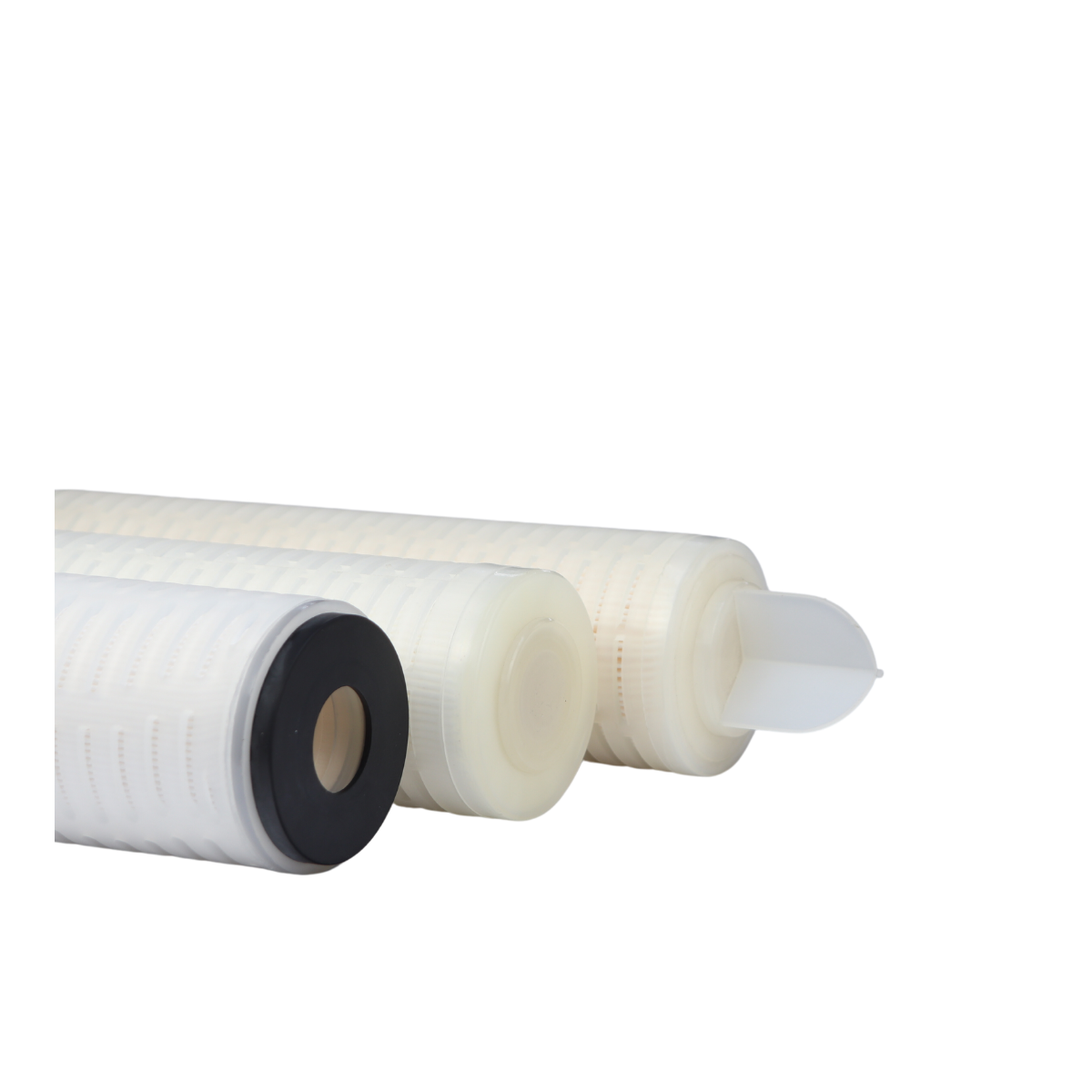

- Different end styles available: DOE, S2C, S2F, S6C, S6F
