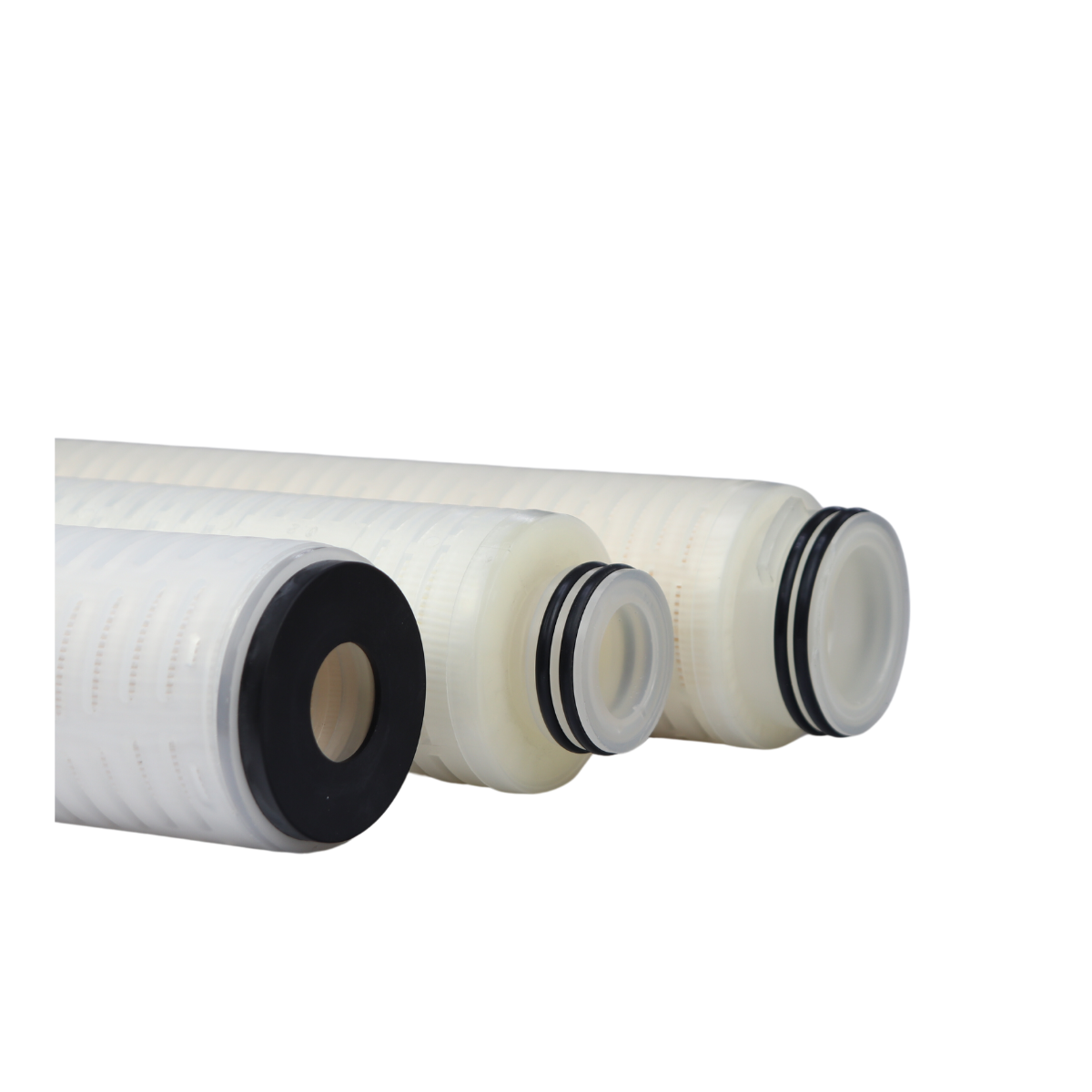

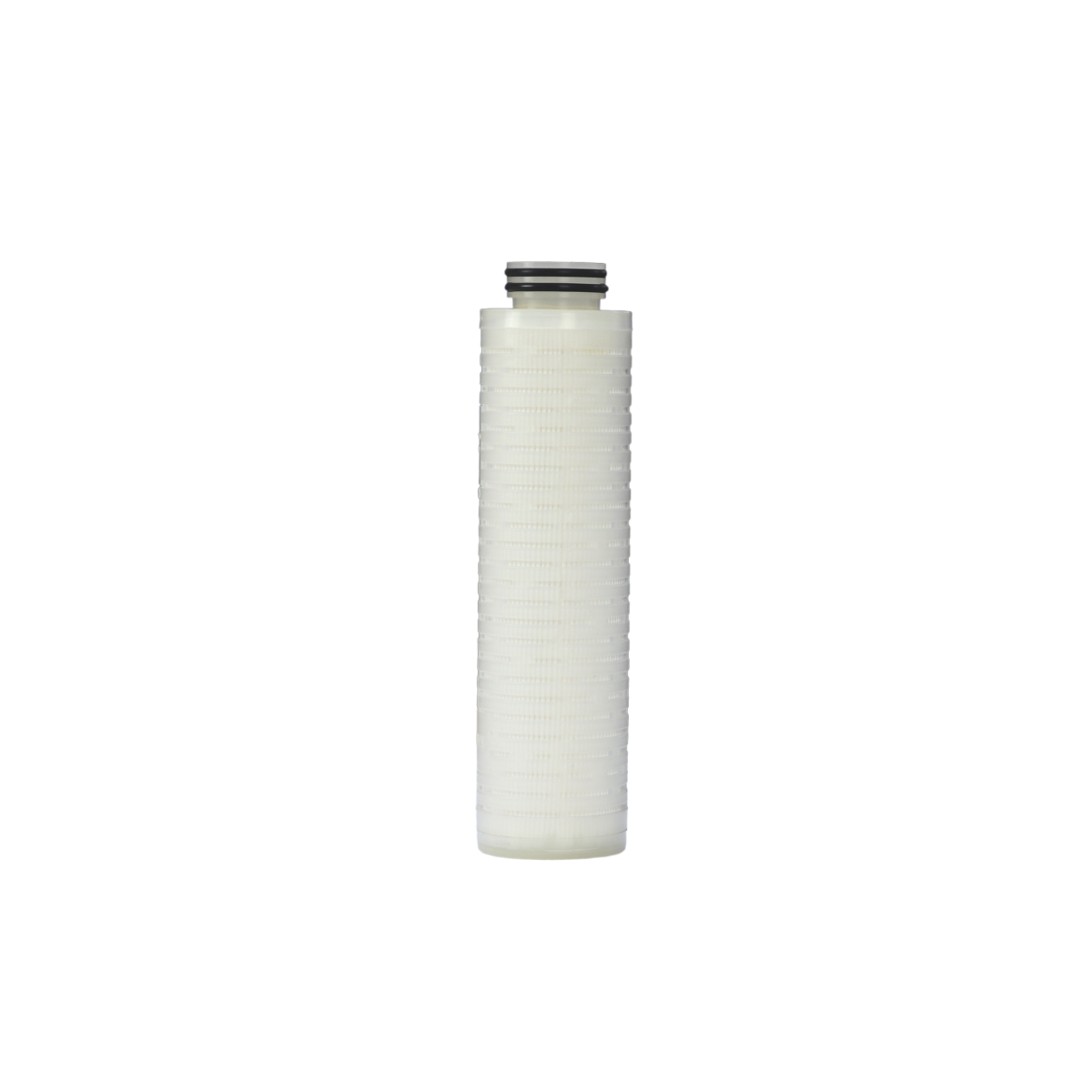

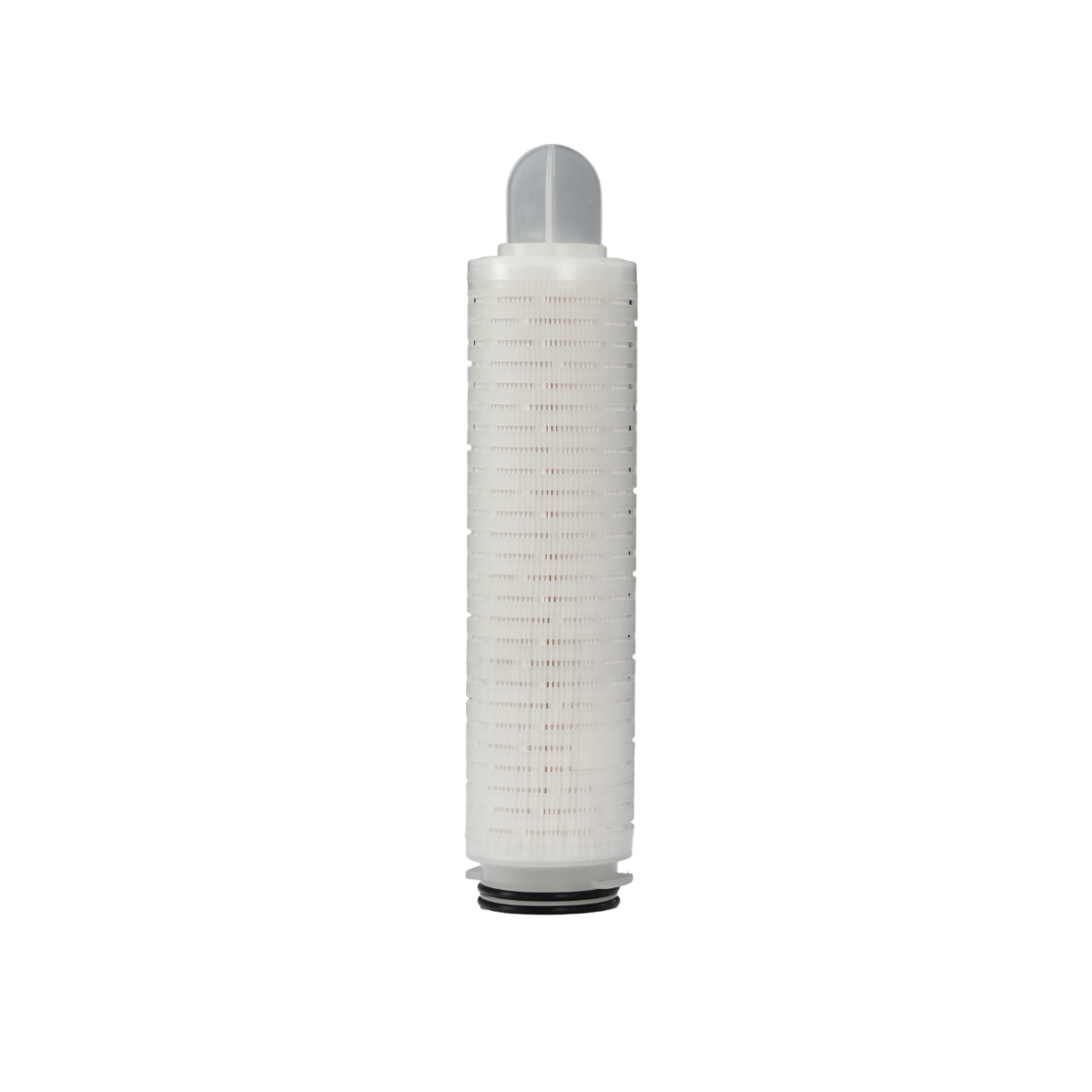

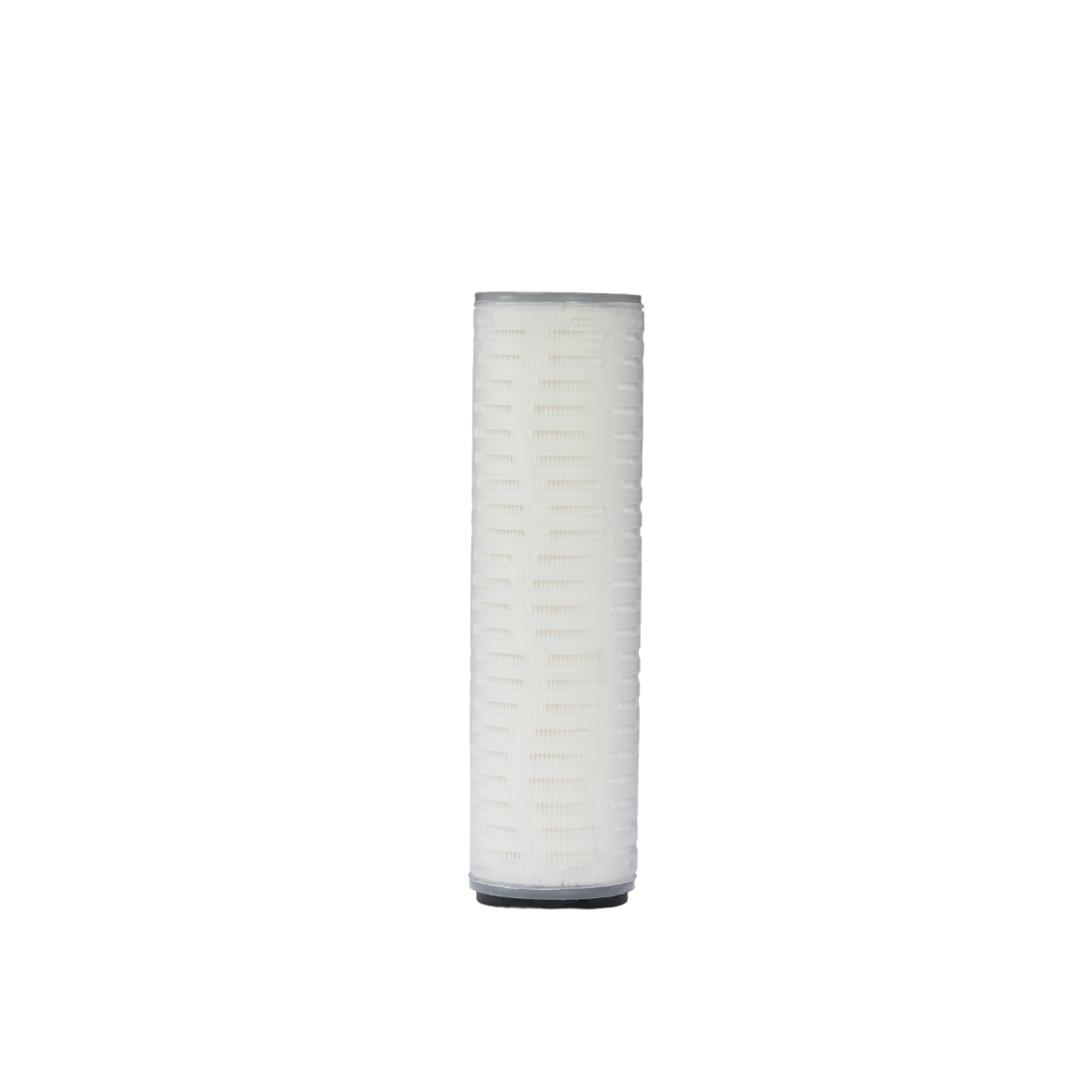

Polytetrafluoro-Ethylene Pleated Membrane Particle Filter Cartridge
Brand:
Product Code:
PTFE
The Karei PTFE membrane cartridges feature GORETEX expanded Polytetrafluoroethylene media, reinforced with pure polypropylene materials. The expanded hydrophobic nature, coupled with a high void volume, ensures excellent flow rates, minimal pressure drop, and impressive retention capabilities. The three-dimensional bonded continuous fibrils establish a fixed pore structure, preventing shedding and particle unloading. With a guaranteed removal rating of 99.9999% for 0.03 micron particles, this filter stands out for its efficiency.
Compliant with FDA Code of Federal Regulation Title 21 for F&B use. Meet USP Class Vl- 121°C plastic reactivity test for biosafety.
Suitable for wide range of process fluid applications including pharmaceutical, micro-electronics, F&B, biological, cosmetics
- Inert Teflon provide excellent chemical compatibility
- Excellent retention capability of micron particles and bacteria.
- All components, parts and supporting layers are thermally welded without any surfactants, binder or adhesive.
- Absolute micron rating: 0.05, 0.1, 0.2, 0.45, 0.7, 1
- Length (inch): 10, 20, 30, 40
- Different end styles available: DOE, S2C, S2F, S6C, S6F
