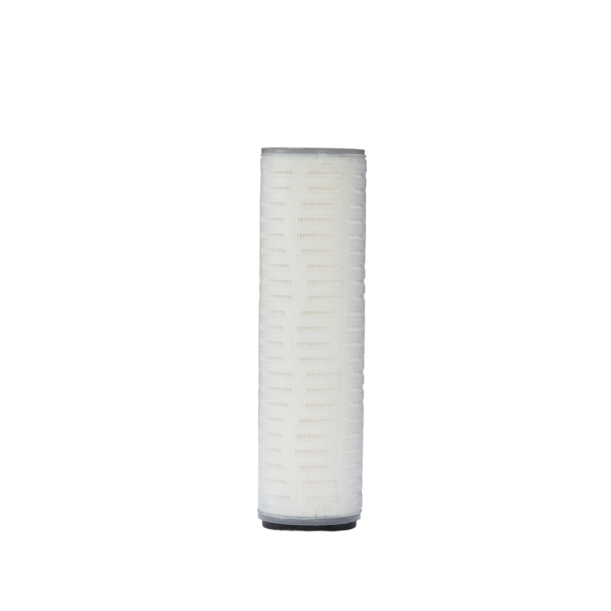

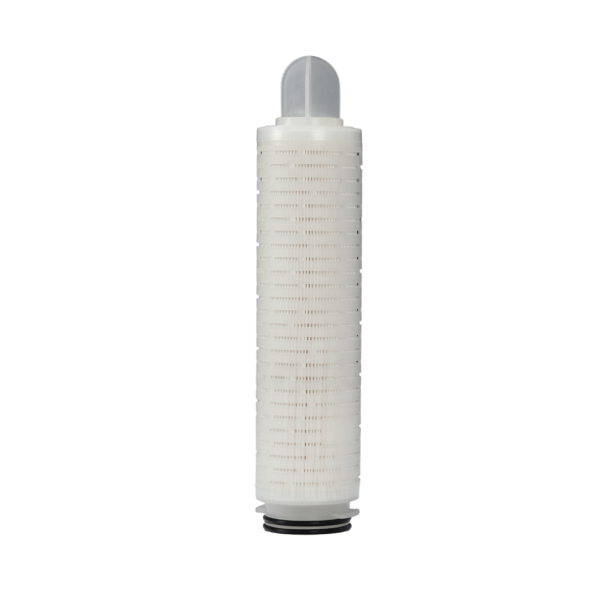

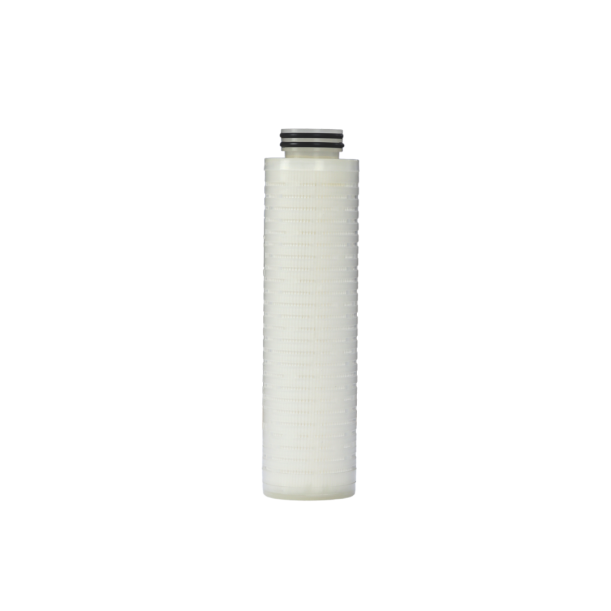

Nylon 66 Pleated Membrane Particle Filter Cartridge
Brand:
Product Code:
N66
The Karei N66 cartridge filters consist of a high-purity Nylon 66 membrane cast onto a non-woven polyester material. With an absolute fixed pore rating, they excel in removing particles and retaining bacteria effectively. Their combination of large voids volume and a porous medium facilitates superior flow rate and minimal pressure drop, ultimately extending the lifespan of the filter.
Compliant with FDA Code of Federal Regulation Title 21 for F&B use and manufactured in Class 10K cleanroom environment.
Suitable for wide range of process fluid applications including pharmaceutical, micro-electronics, F&B, biological, cosmetics
- Typical log reduction value for bacteria of 0.1 and 0.2 micron ≥ 8
- All components, parts and supporting layers are thermally welded without any surfactants, binder or adhesive.
- Absolute micron rating: 0.1, 0.2, 0.45, 0.65, 1
- Length (inch): 10, 20, 30, 40

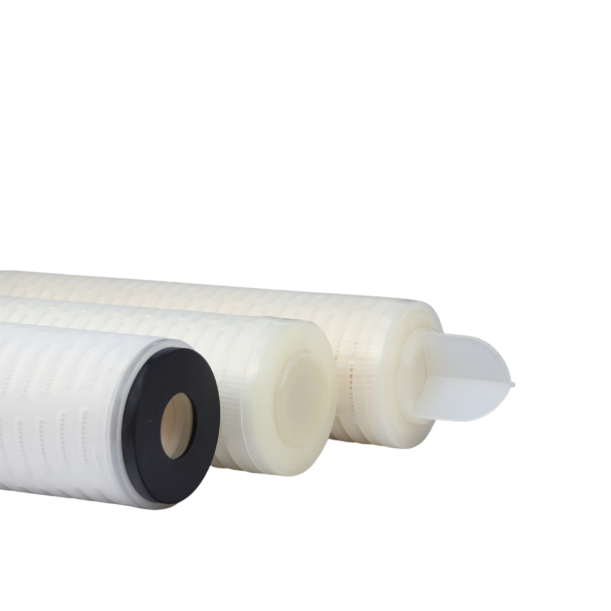

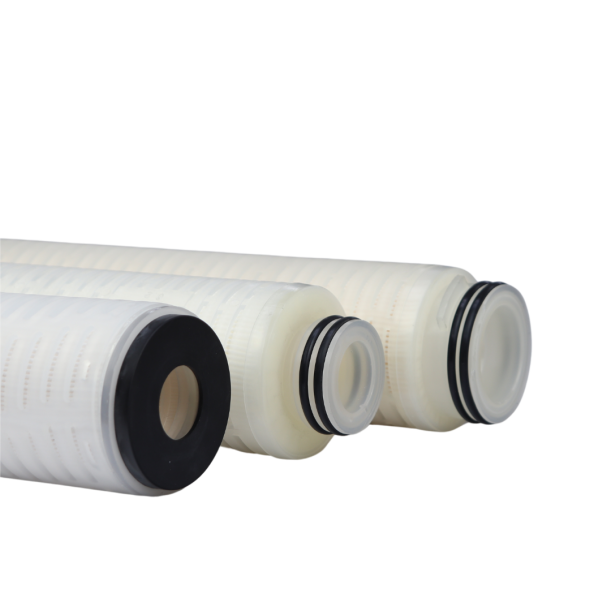

- Different end styles available: DOE, S2C, S2F, S6C, S6F
