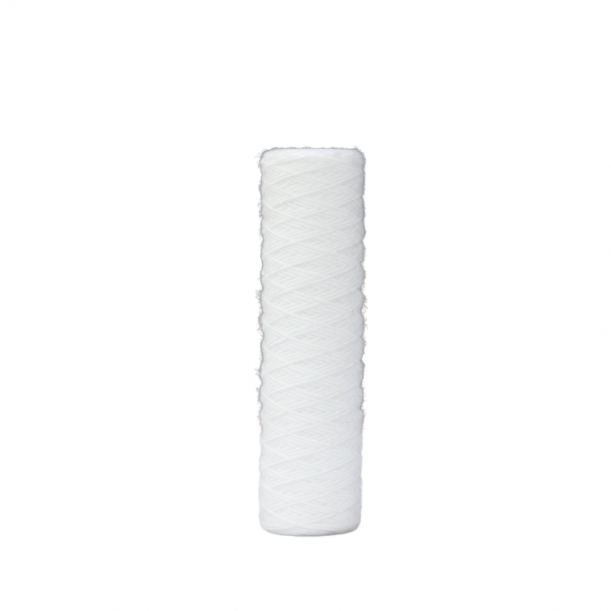

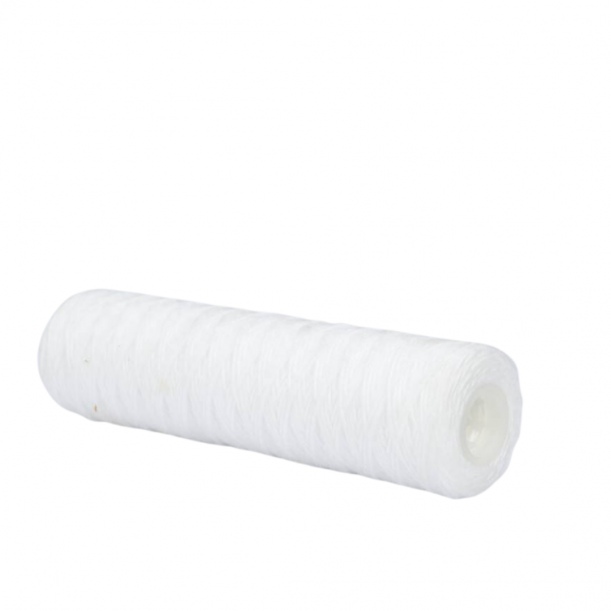

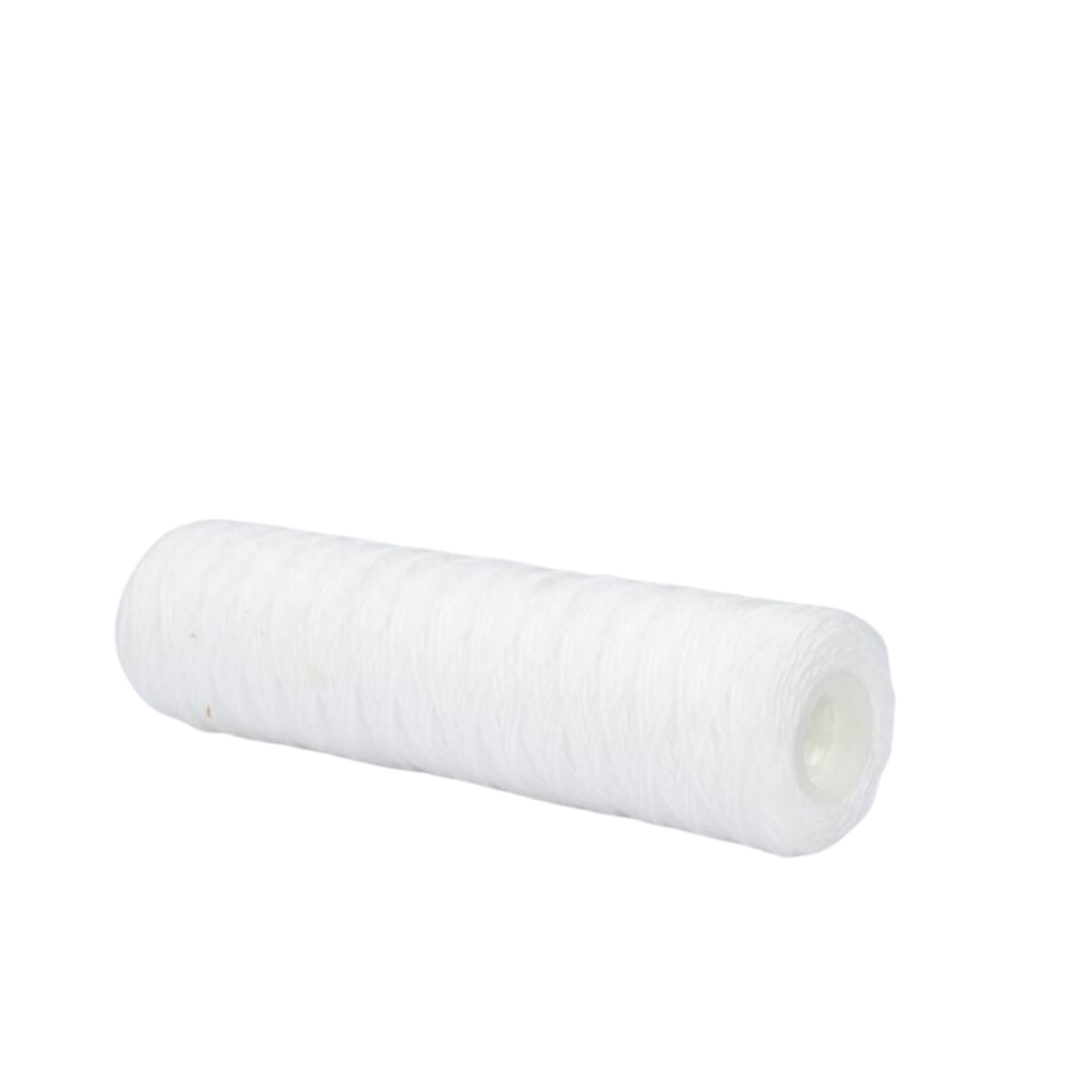

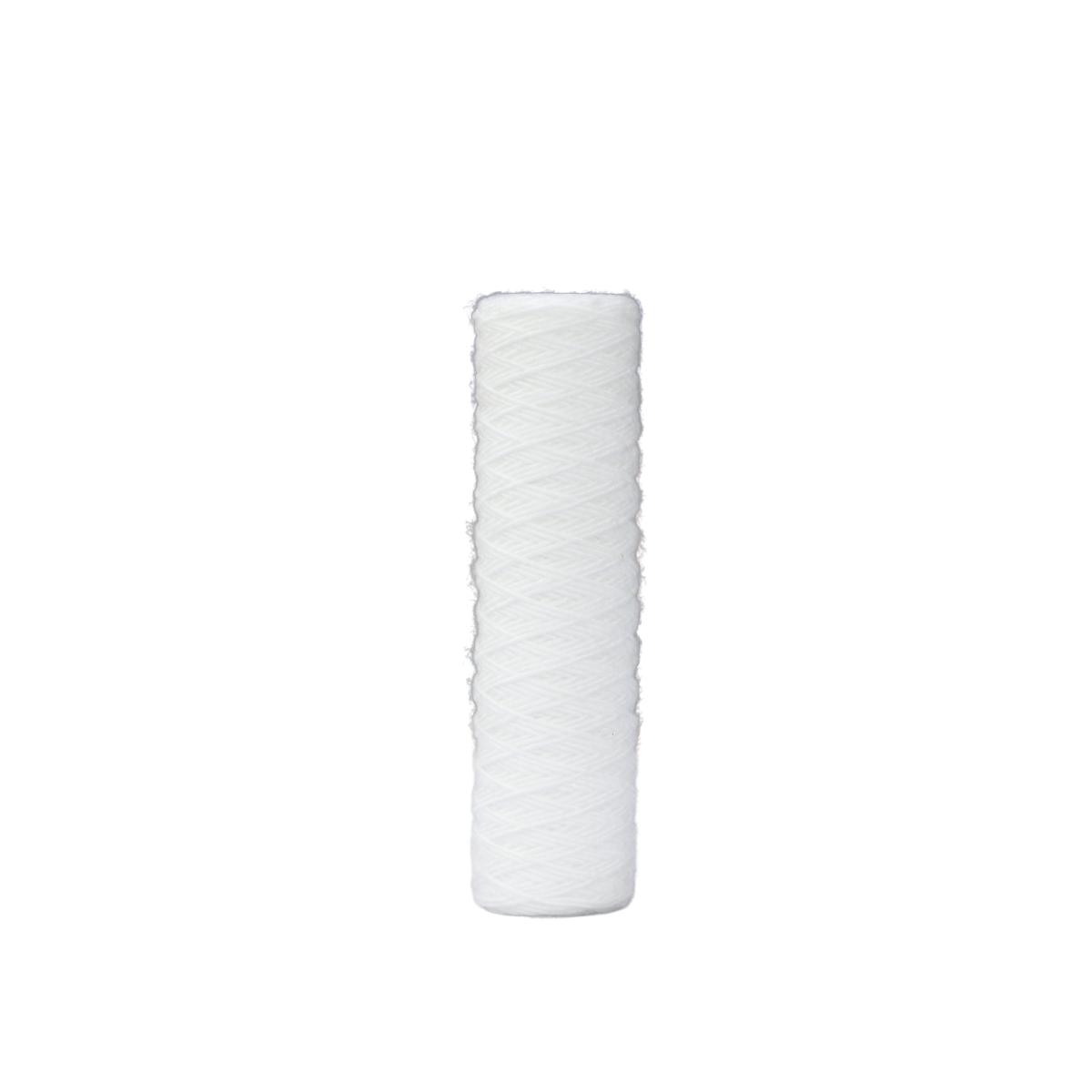

Silicone Free String Wound Filter Cartridge
Brand:
Product Code:
SF
Karei SF wound depth filter is manufactured using state-of-the-art technology to guarantee reliable quality. The advanced filter media assures no fibre migration and contamination and provides true depth filtration utilizing thousands of tapered filtering passages of controlled size and shape. Each layer of roving is napped to increase filtration area, enhancing efficiency by trapping particles evenly.
FDA Code of Federal Regulation Title 21 compliances yarn material suitable for food and beverage use.
Excellent chemical compatibility with chemicals, solvents, petroleum, vegetable oils.
- Gradual pressure increase throughout filter lifespan
- Nominal micron rating: 0.5, 1, 3, 5, 10, 25, 50, 75, 100, 150
- Length(inch): 10, 20, 30, 40, 50
- Material: Polypropylene, Polyester, Micro Fiber-Glass, Cotton
- Outer Diameter: 63mm (Normal)
- Inner Diameter: 28mm
- Maximum Operating Temperature: Depends on media & core material
- Maximum Pressure Change: 35 PSID at 25°C
